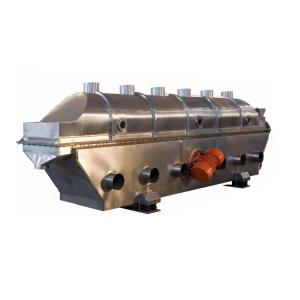

ZLG Continuous Horizontal Vibration Fluid Bed Dryer

Brand Name : shinma

Model Number : ZLG6*06

Certification : CE, IS014001, ISO9001

Place of Origin : changzhou

MOQ : 1set

Price : USD30000-80000/set

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 30sets/year

Delivery Time : 60days

Packaging Details : nacked packing

material : SUS304,SUS316L

Name : Vibration Fluid Bed Dryer

Dimension(L*W*H) Based on different model : Based on different model

Evaporation Capacity(kg/h) : 50

Heating Method : Electric Heating

Material : Stainless Steel 304/SUS316

Applicable Industries : Food & Beverage Factory, Farms, Chemical factory

Core Components : Motor, PLC, Gearbox,Engine

Bed length : 3m-7.5m

Contact Now

ZLG series continuous horizontal Vibration fluid bed dryer


Product Description
The material enters the machine from the feed port. Under the action of vibration, the material is thrown along the horizontal fluidized bed and moves forward continuously. After the hot air passes through the fluidized bed and exchanges heat with the wet material, the wet air passes through the cyclone separator to remove dust. It is discharged from the exhaust port, and the dry material is discharged from the discharge port.

Application & Features
Suitable for drying and cooling of powdery and granular materials in chemical, pharmaceutical, food, dehydrated vegetables, grain,minerals and other industries. Such as: salt, rice, citric acid, monosodium glutamate, borax, ammonium sulfate, compound fertilizer, shredded radish, soybean meal, vinasse, seeds, slag, sugar, etc.
Model
Fluidized bed area(㎡)
Inlet air temperature(℃)
Outlet air temperature(℃)
Water evaporating capacity
(kg/h)
Vibration motor power
(kw)
CWLD3*0.3
0.9
70-140
40-70
20-35
0.8*2
CWLD4.5*0.3
1.35
35-50
0.8*2
CWLD4.5*0.45
2.025
50-70
1.1*2
CWLD4.5*0.6
2.7
70-90
1.1*2
CWLD6*0.45
2.7
80-100
1.5*2
CWLD6*0.6
3.6
100-130
1.5*2
CWLD6*0.75
4.5
120-170
2.2*2
CWLD6*0.9
5.4
140-170
2.2*2
CWLD7.5*0.6
4.5
130-150
2.2*2
CWLD7.5*0.75
5.625
150-180
3.0*2
CWLD7.5*0.9
6.75
160-210
3.0*2
CWLD7.5*1.2
9
200-260
3.7*2

Model Fluid bed(M2) Inlet air temperature(°C) Outlet air temperature (°C) Evaporate capacity
(kg/h)		 Vibration motor
Model Power (kw)
ZLG3×0.30 0.9 70-140 40-70 20-35 ZDS31-6 0.8×2
ZLG4.5×0.30 1.35 70-140 40-70 35-50 ZDS31-6 0.8×2
ZLG4.5×0.45 2.025 70-140 40-70 50-70 ZDS32-6 1.1×2
ZLG4.5×0.60 2.7 70-140 40-70 70-90 ZDS32-6 1.1×2
ZLG6×0.45 2.7 70-140 40-70 80-100 ZDS41-6 1.5×2
ZLG6×0.60 3.6 70-140 40-70 100-130 ZDS41-6 1.5×2
ZLG6×0.75 4.5 70-140 40-70 120-140 ZDS42-6 2.2×2
ZLG6×0.9 5.4 70-140 40-70 140-170 ZDS42-6 2.2×2
ZLG7.5×0.6 4.5 70-140 40-70 130-150 ZDS42-6 2.2×2
ZLG7.5×0.75 5.625 70-140 40-70 150-180 ZDS51-6 3.0×2
ZLG7.5×0.9 6.75 70-140 40-70 160-210 ZDS51-6 3.0×2
ZLG7.5×1.2 9 70-140 40-70 200-260 ZDS51 3.0×2

ZLG Continuous Horizontal Vibration Fluid Bed DryerZLG Continuous Horizontal Vibration Fluid Bed Dryer

ZLG Continuous Horizontal Vibration Fluid Bed DryerZLG Continuous Horizontal Vibration Fluid Bed DryerZLG Continuous Horizontal Vibration Fluid Bed DryerZLG Continuous Horizontal Vibration Fluid Bed DryerZLG Continuous Horizontal Vibration Fluid Bed Dryer
